# ZEBRA ZD421T

***

{% hint style="success" %}
**프린터 세팅**과 **인쇄 설정**을 순서대로 진행하세요.
{% endhint %}

## 1. 프린터 세팅 <a href="#printer-installation" id="printer-installation"></a>

{% stepper %}
{% step %}

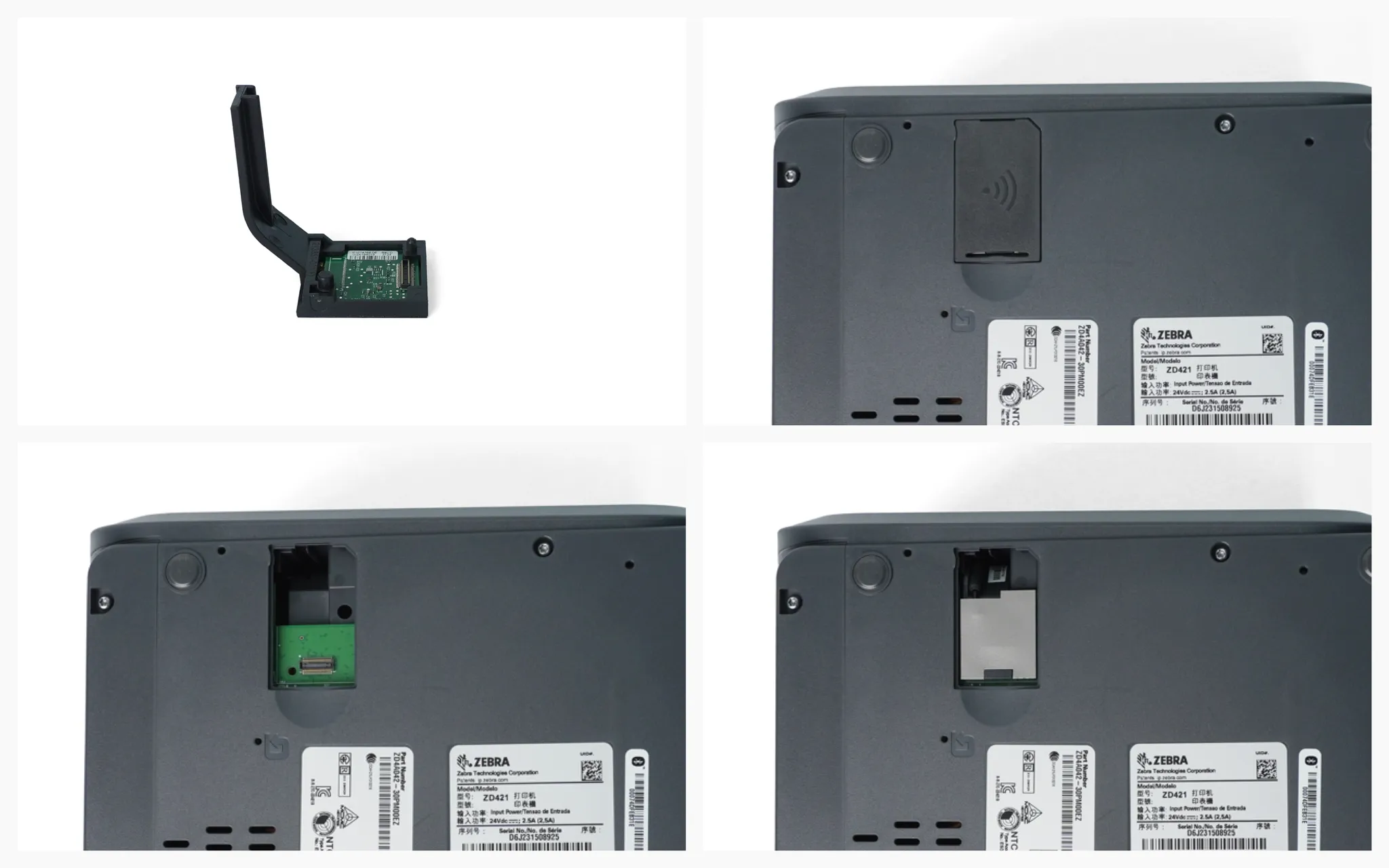

모바일 인쇄를 위해 **Bluetooth, Wi-Fi 모듈을 구매한 경우**, 프린터 바닥의 캡을 열어 모듈을 장착해 주세요. (모듈이 없다면 이 단계는 건너뛰세요.)

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-1078679e85fb700fe50d5925c333542c35a04d0f%2Fimage%20(74).png?alt=media" alt="와이파이 모듈 연결"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

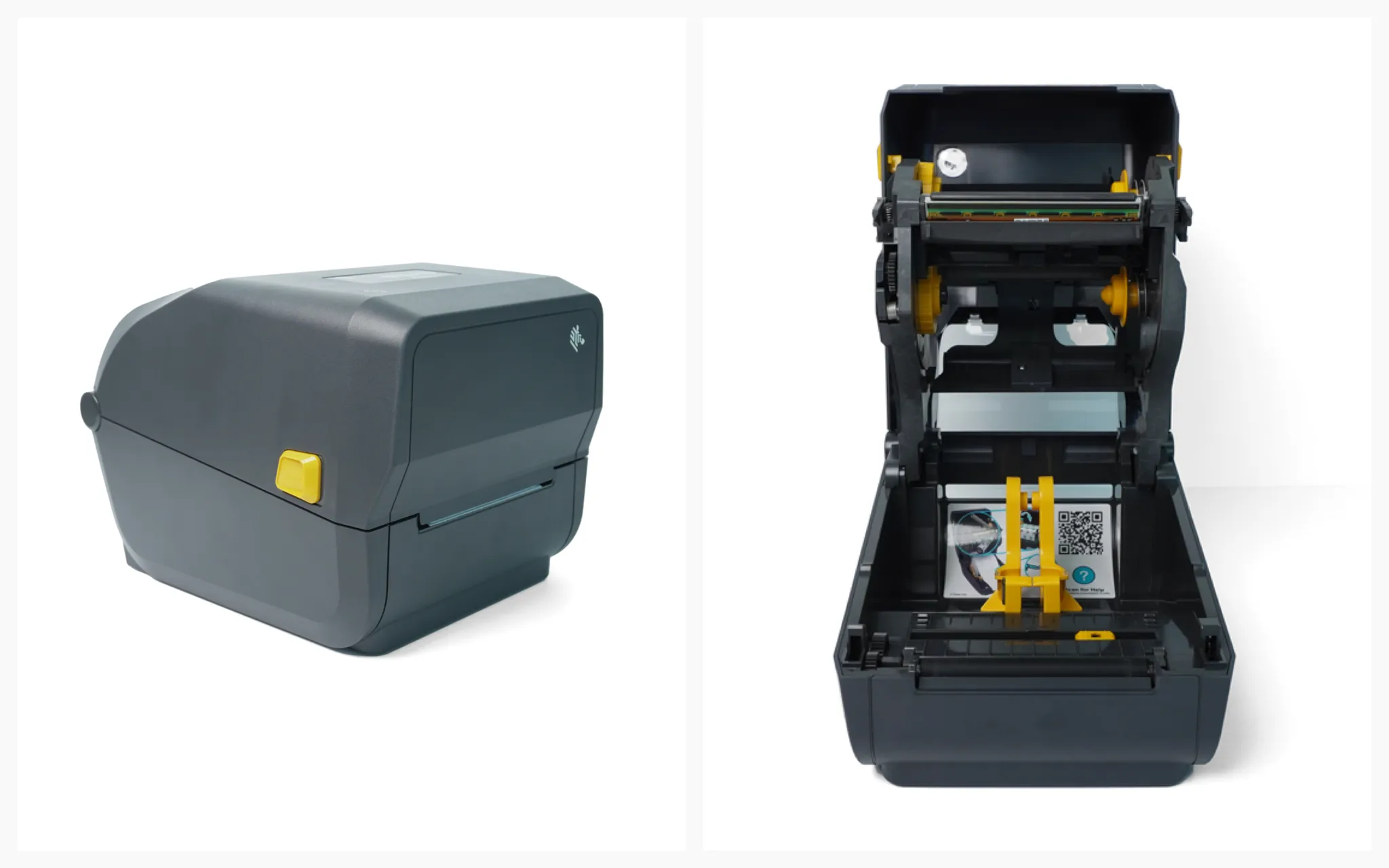

프린터 양쪽에 있는 **노란색 버튼**을 당기며 커버를 엽니다.

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-7fd448a3c0dc398dc61a526e462754101db34eb5%2Fimage%20(75).png?alt=media" alt="ZEBRA ZD421T 커버 열기"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

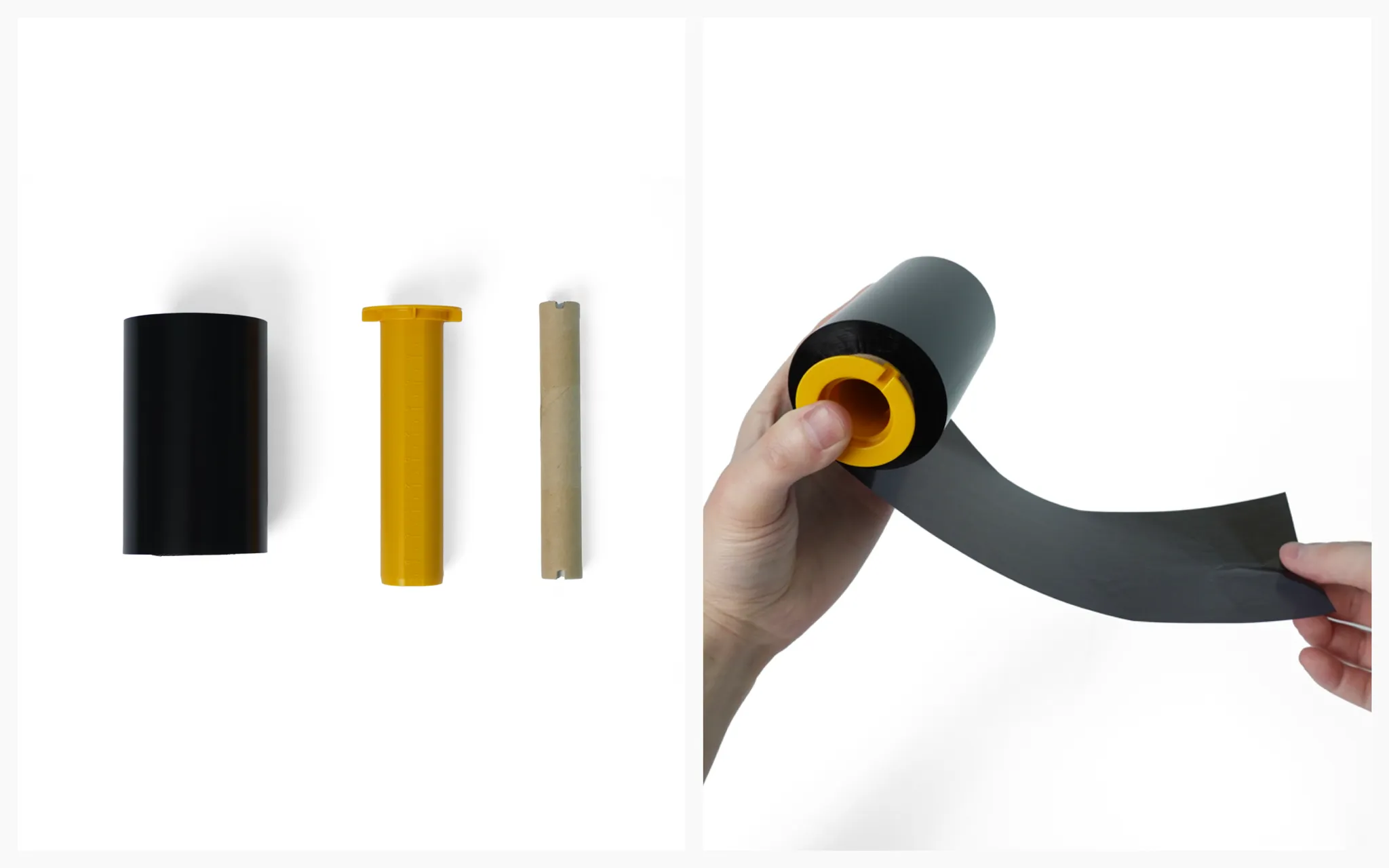

리본은 **바깥면이 아래**로 향하게 두고 홀더와 결합합니다.

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-e5325abc31efc331d9c0440fbbbaf5af78f90404%2Fimage%20(76).png?alt=media" alt="리본과 홀더 결합"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

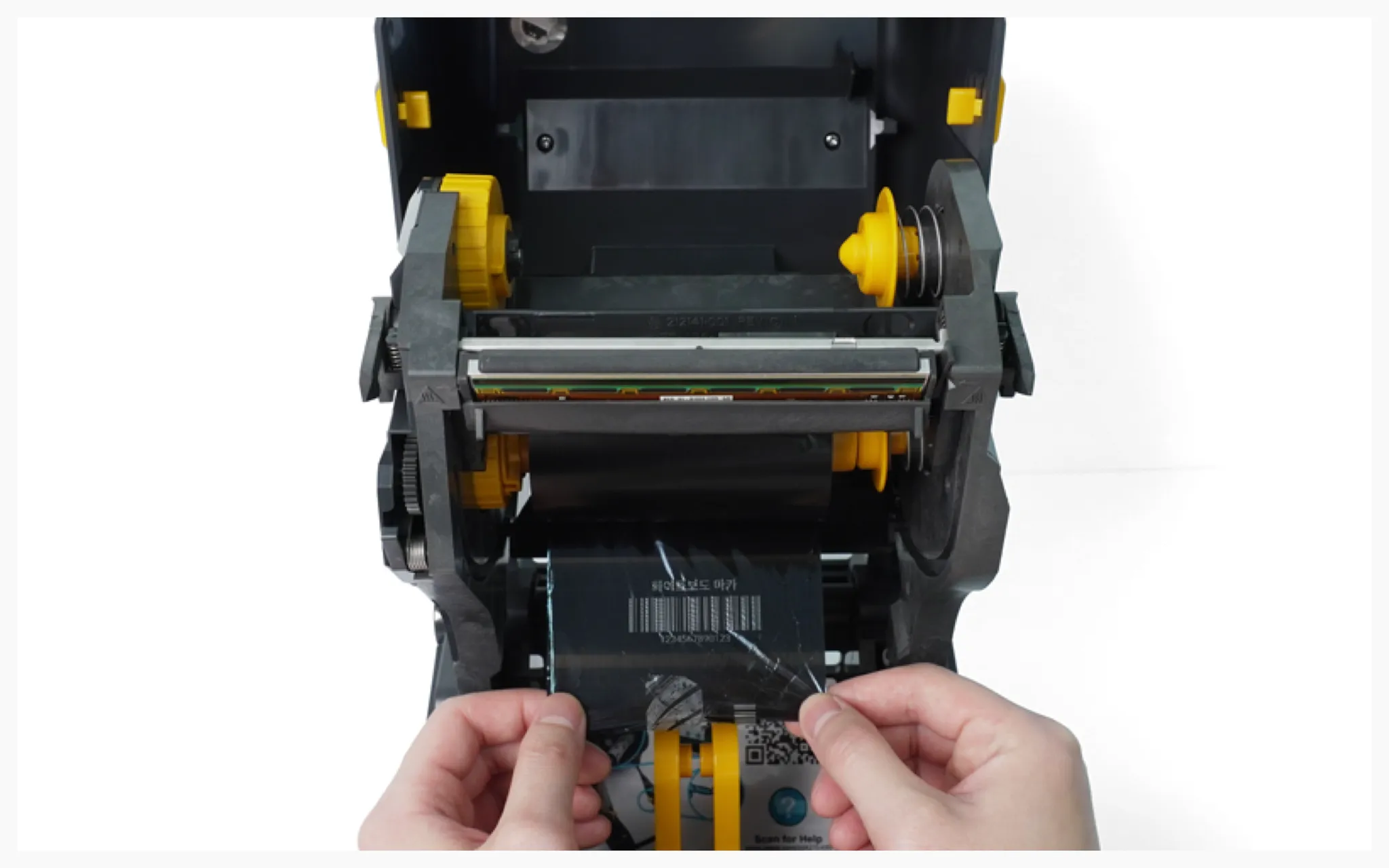

결합된 **리본**을 프린터에 장착합니다.

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-dea3ccca71da57640f31b32d19f086e6aa7dcb16%2Fimage%20(77).png?alt=media" alt="리본 프린터 장착"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

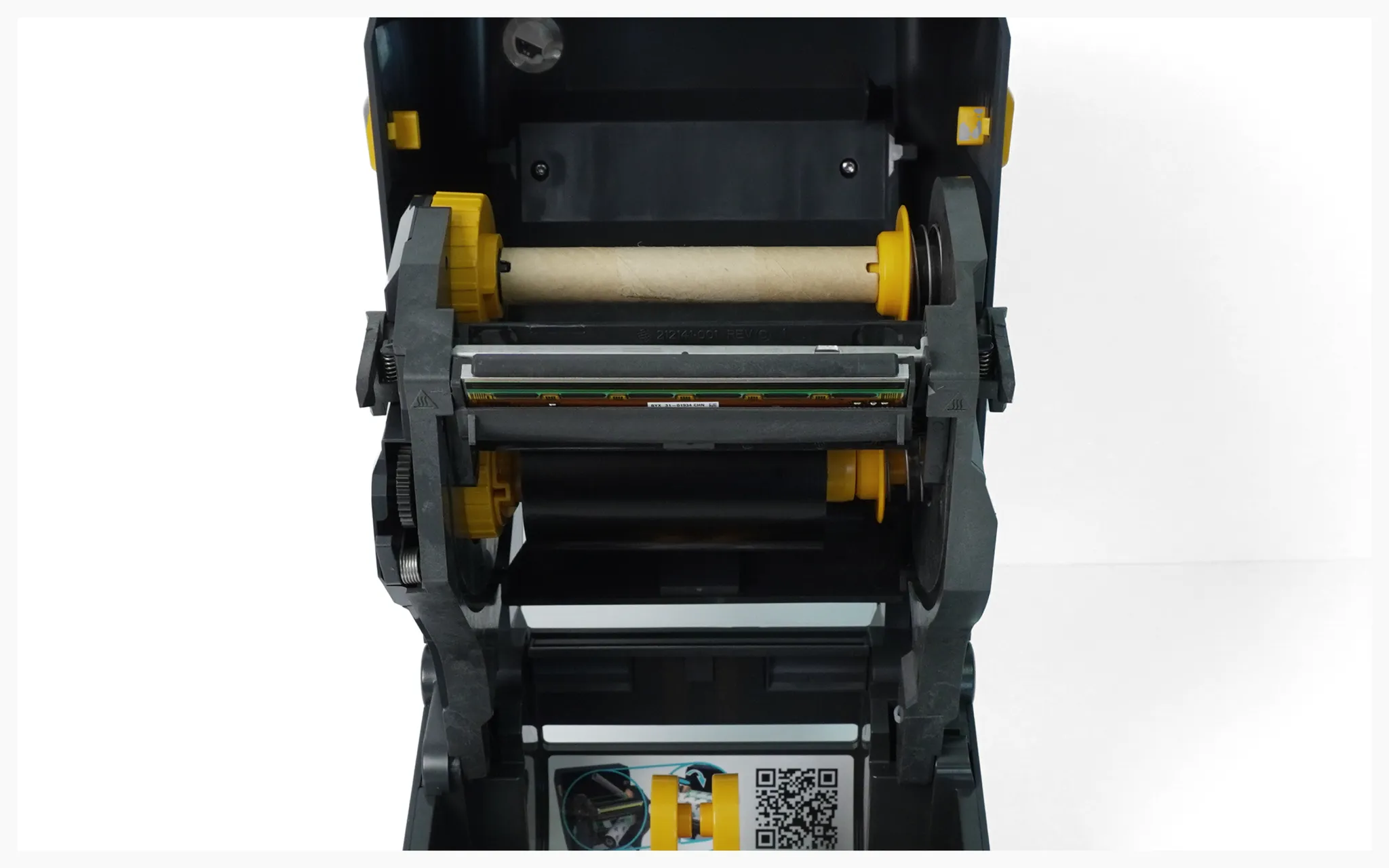

**지관**도 프린터에 장착합니다.

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-b8992058b0b22fe451ad2143f5c77650462ded14%2Fimage%20(78).png?alt=media" alt="지관 장착"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

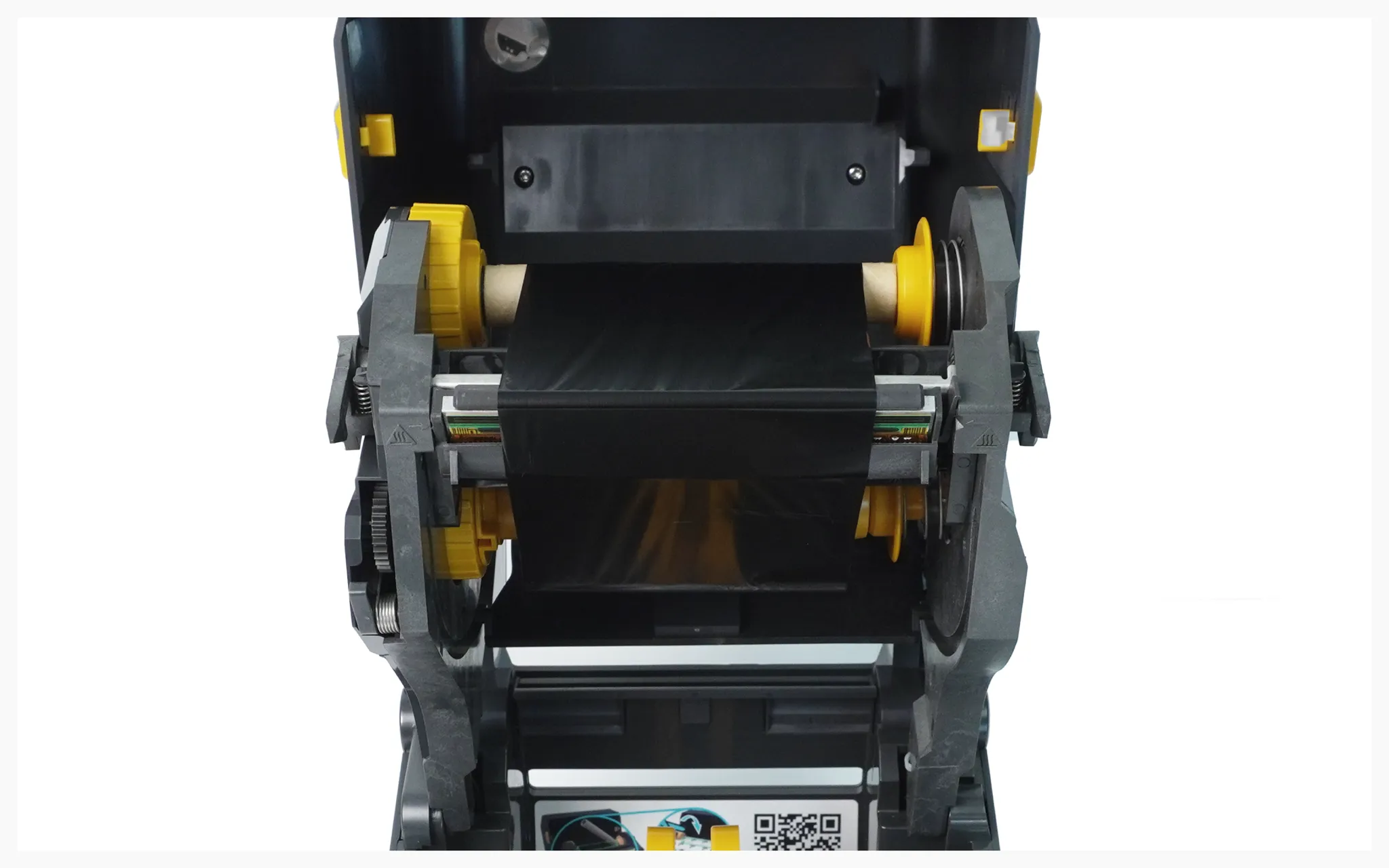

테이프로 리본을 고정한 후, 평평하게 펴질 수 있도록 살짝 감아줍니다.

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-f984ca90073e1399d8a844f91ebcff787e7b236b%2Fimage%20(80).png?alt=media" alt="리본 고정"><figcaption></figcaption></figure>

{% embed url="<https://customer-0jrbilsa8yt3k758.cloudflarestream.com/001677b2bd784cc8be698d735ac4d147/iframe?autoplay=true&controls=false&letterboxColor=transparent&loop=true&muted=true&poster=https://customer-0jrbilsa8yt3k758.cloudflarestream.com/001677b2bd784cc8be698d735ac4d147/thumbnails/thumbnail.jpg?height=1080&preload=true>" %}
{% endstep %}

{% step %}

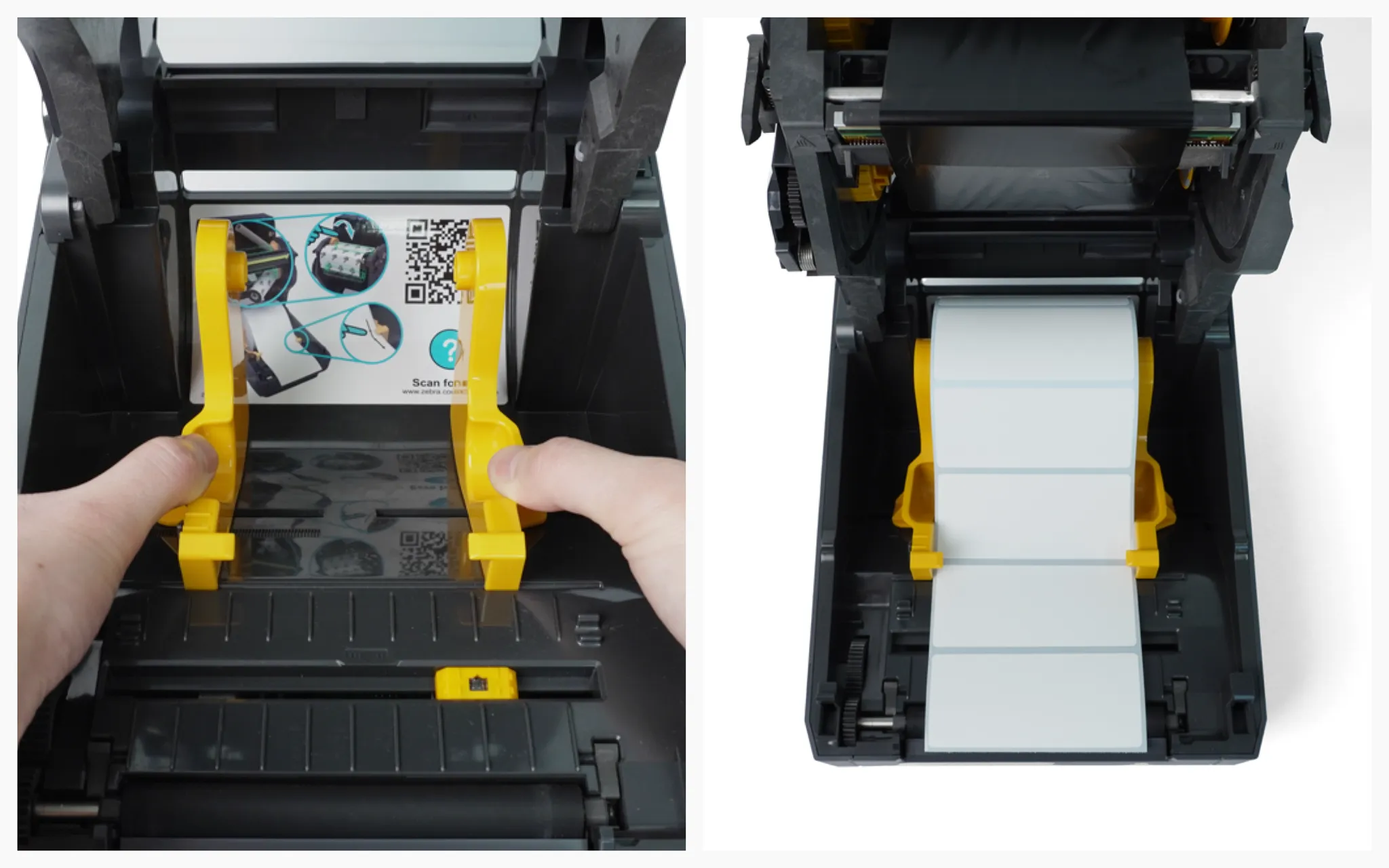

미디어 홀더 사이에 **라벨 용지**를 장착해 주세요.

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-11e1f94c3505f350ff075a7c2d6c6f4d5d01f580%2Fimage%20(81).png?alt=media" alt="라벨 용지 장착"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

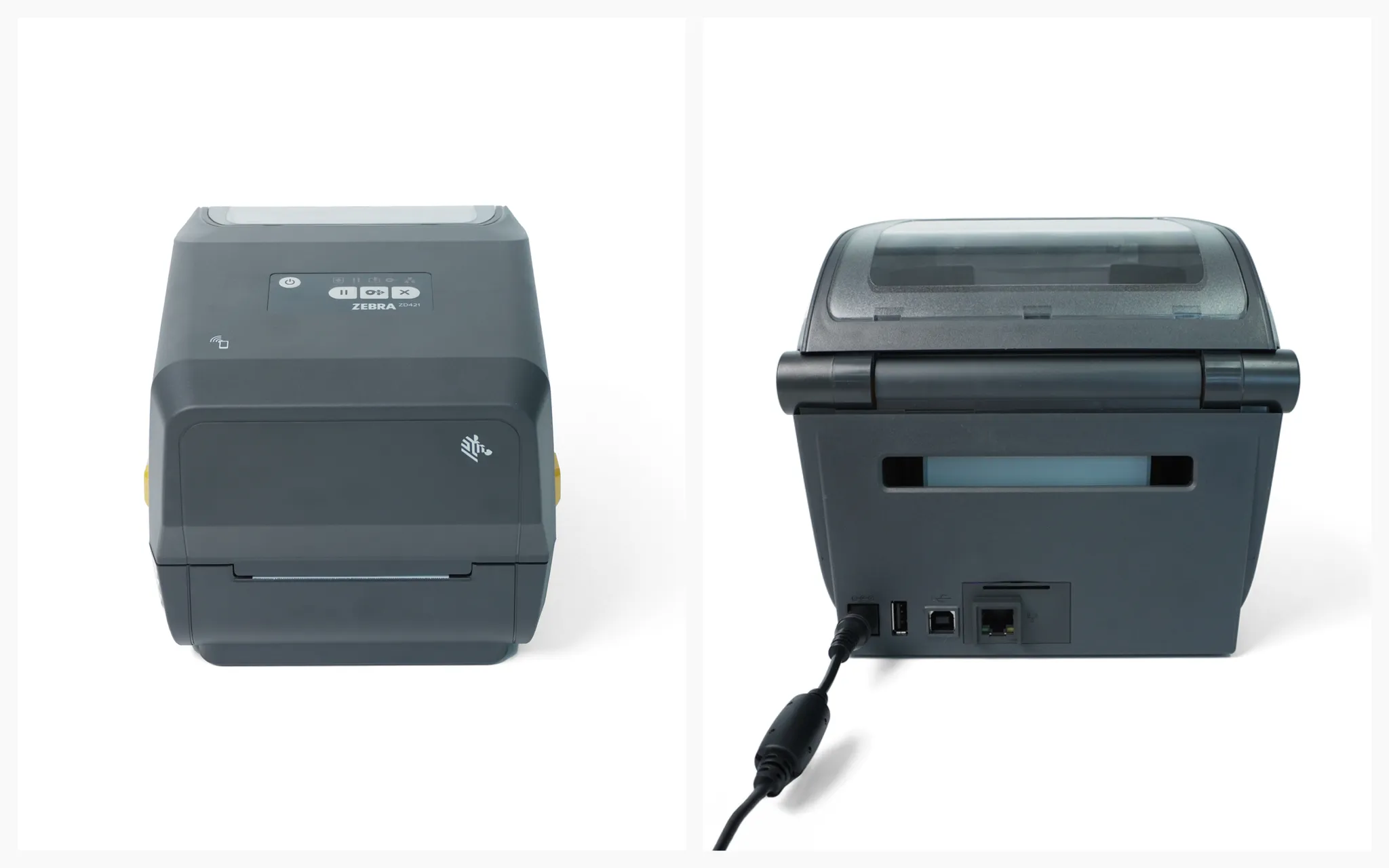

프린터 커버를 닫고 **전원 케이블**을 연결합니다.

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-0c4863efafd423ac1bbb44275f46921728e059b8%2Fimage%20(82).png?alt=media" alt="전원 케이블 연결"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

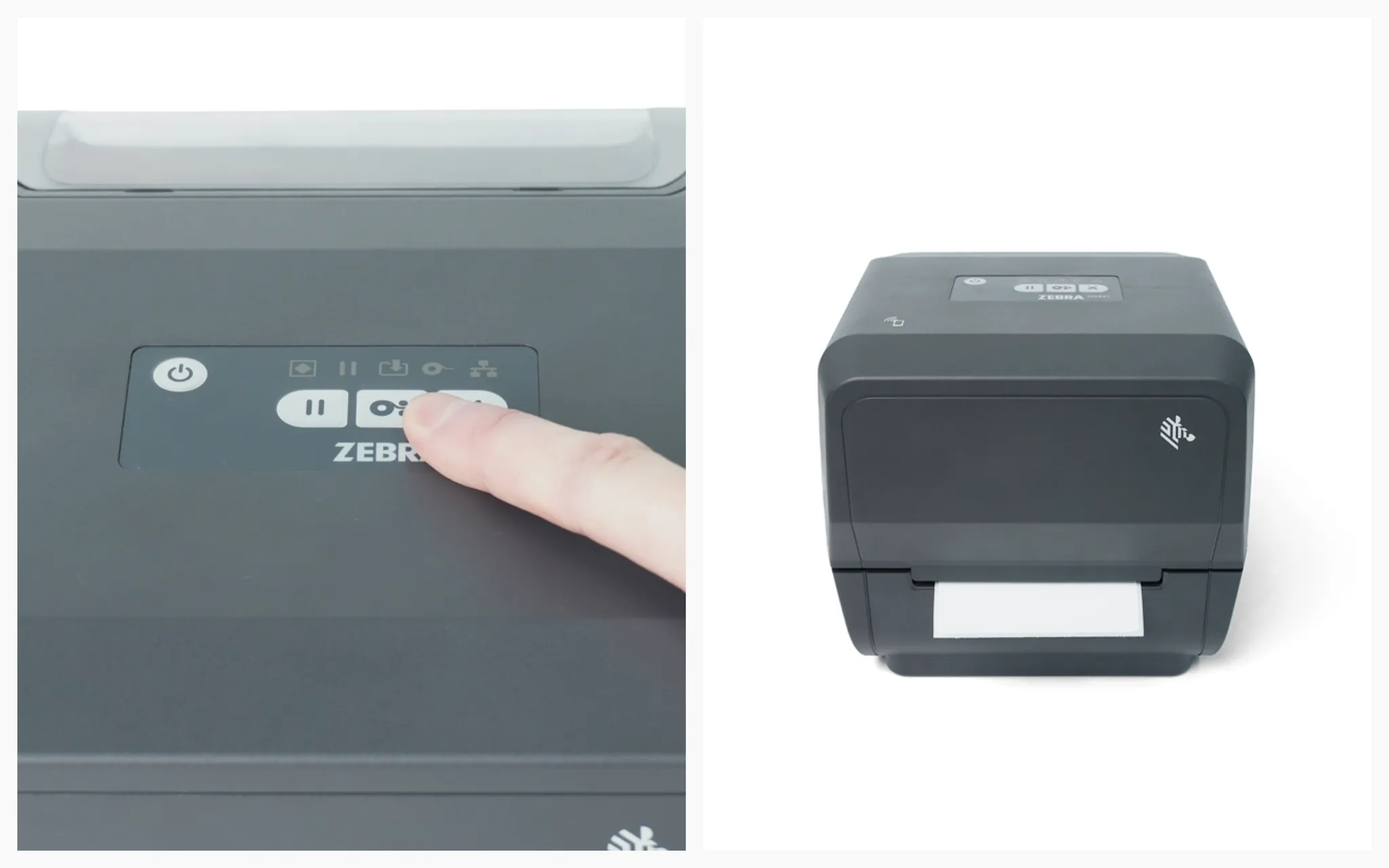

전원 버튼을 누르고 상태 LED가 초록색으로 바뀔 때까지 기다려 주세요. 그 다음 **급지 버튼(FEED)**&#xC744; 눌러 용지가 정상적으로 나오는지 확인합니다.

<figure><img src="https://3639913499-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FnmQcxJVYbkAeUq7yQCkF%2Fuploads%2Fgit-blob-60024f954acad1e73b38194d18c461e759762fed%2Fimage%20(83).png?alt=media" alt="급지 버튼을 눌러 인쇄 테스트"><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

***

## 2. 인쇄 설정 <a href="#printer-connection" id="printer-connection"></a>

프린터 세팅이 완료되면, 사용하실 인쇄 방식을 선택한 후 다음 단계를 진행해 주세요.

{% content-ref url="zebra-zd421t/zd421t-pc-usb" %}
[zd421t-pc-usb](https://www.boxhero.io/docs/documentation/ko/device-setup/barcode-printer/zebra-zd421t/zd421t-pc-usb)
{% endcontent-ref %}

{% content-ref url="zebra-zd421t/zd421t-pc-wifi" %}
[zd421t-pc-wifi](https://www.boxhero.io/docs/documentation/ko/device-setup/barcode-printer/zebra-zd421t/zd421t-pc-wifi)
{% endcontent-ref %}

{% content-ref url="zebra-zd421t/zd421t-pc-usb-bt" %}
[zd421t-pc-usb-bt](https://www.boxhero.io/docs/documentation/ko/device-setup/barcode-printer/zebra-zd421t/zd421t-pc-usb-bt)
{% endcontent-ref %}

{% content-ref url="zebra-zd421t/zd421t-mobile" %}
[zd421t-mobile](https://www.boxhero.io/docs/documentation/ko/device-setup/barcode-printer/zebra-zd421t/zd421t-mobile)
{% endcontent-ref %}


---
